BL-18
(Pneumatic Semi Auto/Copper/Aluminium)

Circular Cold Saw
(Metal/Copper/Aluminium)(Semi-auto/Pneumatic/Manual)


MODEL BL-18
Cutting Angle 90º & 45º
Maximum Width of Cut 300 mm
Maximum Thicknewss of Cut 125 mm
Saw Arbor Speed 3500 RPM
Sawblade Size Ø355-Ø455xØ25.4 Hole x 80z or 100z or 120z
Cycle Speed 10-15 cycle/min.
Table Area 645x668 mm
Table Height from Floor 850 mm
Motor 5 HP
Air Pressure 5-6 kg/cm² (120 ℓ/min)
Length of Roller made to meet the required length
Machine Dimension 840x660x1150 mm
Packing Dimension 890x740x1350 mm
*The manufacturer always performs product improvements to achieve the best possible performance. All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. Product specifications are based on the actual machines. The manufacturer holds explanation rights.

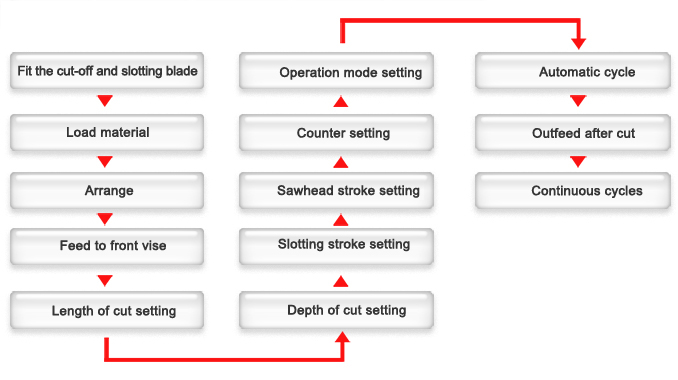

Motion Flow Chart

Cutting Capacity

MODEL BL-18
Saw Blade Size Ø455 mm
Head Swivel 90° 45°
mm 110x110 100x100
mm 120 100
mm 120 110
mm 110x110 100x100
mm 110x110 100x100
mm 110x110 100x100
mm 200x100 120x100
